Feed Machinery Explained: Equipment, Processes and Complete Feed Mill Solutions

September 20, 2026

Feed machinery encompasses the industrial processing units designed to convert raw agricultural commodities into balanced animal feed formulations. Commercial animal production depends on precisely processed nutritional diets to sustain livestock growth and health.

According to data published by the International Feed Industry Federation (IFIF), global compound feed output exceeds 1 billion metric tons annually, generating a commercial market value above 400 billion US dollars[1].

A complete feed manufacturing plant integrates multiple operational units into a continuous sequence. This workflow includes raw material grinding, batch mixing, conditioning, pelleting or extrusion, cooling, screening, and automated packaging.

What Is Feed Machinery?

Feed machinery refers to specialized mechanical equipment utilized to process grains, oilseed meals, minerals, and liquid additives into consumable feed. Individual processing units perform specific physical operations, such as size reduction or moisture transfer.

By contrast, a complete feed production line connects individual machinery through automated material handling systems. This integration establishes a continuous production flow that stabilizes output, reduces labor input per metric ton, and maintains consistent batch parameters.

Commercial feed manufacturing systems serve five primary livestock sectors:

l Poultry feed for broilers and layer hens

l Livestock feed for swine, cattle, and sheep

l Aquafeed for floating and sinking aquatic species

l Pet food for domestic dogs and cats

l Premix and specialty feed containing concentrated vitamins and minerals

Key Types of Feed Machinery and Their Functions

Grinding equipment	Hammer mills and roller mills reduce raw grain sizes to target particle ranges based on specific processing needs. Particle size reduction increases total surface area, which improves nutrient absorption in animal digestive tracts.
Mixing equipment	Twin-shaft paddle mixers and ribbon mixers homogenize dry ingredients and liquid additions. High-precision mixers achieve a Coefficient of Variation (CV) below 5 percent within a mixing cycle of 120 to 180 seconds.
Pellet mills	Ring-die pellet mills compress conditioned mash through metal dies at temperatures between 80°C and 90°C. This mechanical compression produces dense feed pellets that minimize ingredient segregation and reduce feed dust.
Extruders	Single-screw and twin-screw extruders apply high temperature, high pressure, and mechanical shear to raw mixtures. Extruders achieve starch gelatinization levels above 80 percent, which provides floating buoyancy for aquafeed and pet food.
Dryers and coolers	Counterflow coolers draw ambient air through heated pellets to reduce product temperatures to within 5°C of ambient air. Moisture levels are simultaneously lowered below 12 percent to prevent microbial decay during storage.
Screening equipment	Vibrating sieves and rotary screeners separate fine particles and oversized pieces from finished pellets. Separated fines return to the pelleting chamber, ensuring uniform product sizing in final bags.
Packaging systems	Automated weighing and bagging scales package finished feed into 25-kilogram or 50-kilogram bags at speeds reaching up to 20 bags per minute. Automated systems ensure weight accuracy within precise tolerances.
Automation and control systems	Programmable Logic Controller (PLC) and Supervisory Control and Data Acquisition (SCADA) systems monitor temperature, motor loading, and batch weights across the plant in real time.
Material handling systems	Bucket elevators, screw conveyors, and steel silos transport and store raw materials and finished products, preventing product degradation and dust generation during transfer.
Storage and silo systems	Silos and internal bulk bins store raw grains and processed feeds under controlled conditions. Aeration fans and internal temperature monitoring cables keep relative humidity below 70 percent and moisture levels below 13.5 percent, preventing mold growth and pest infestations.

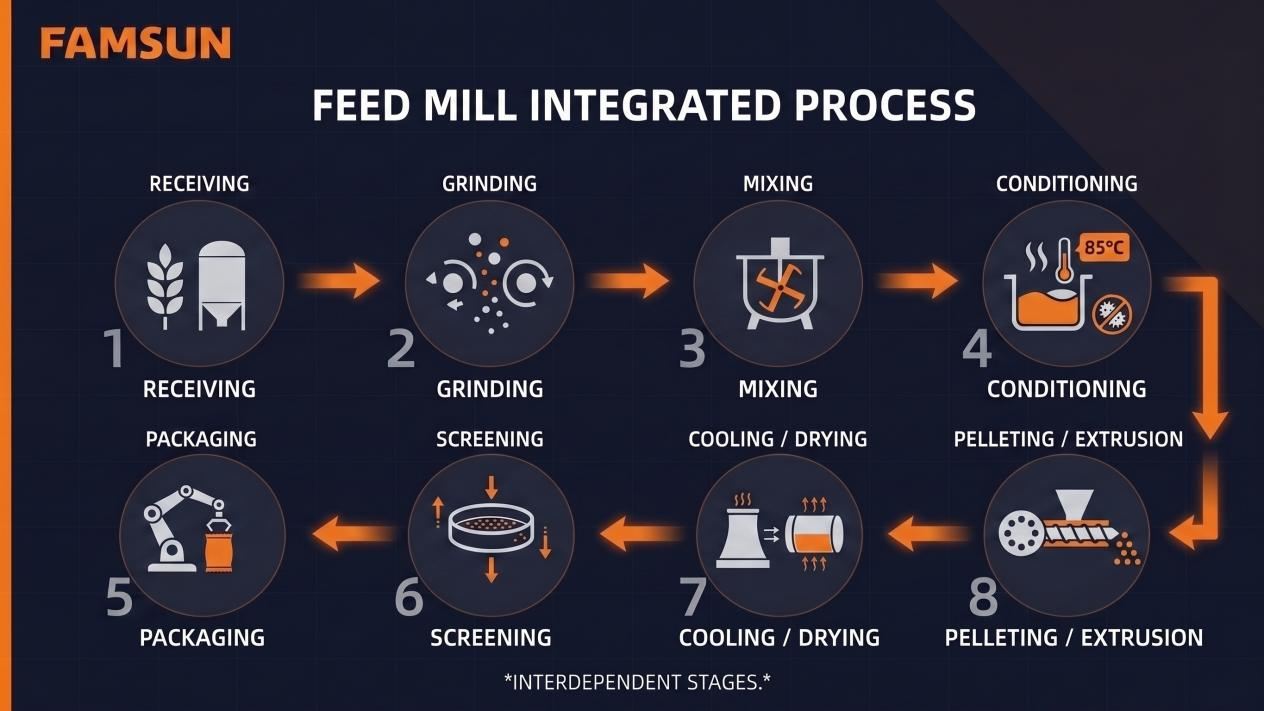

How Feed Machinery Works Together in a Production Line

A complete feed production line operates through a sequential workflow to maintain continuous material transformation:

1. Raw Material Receiving: Bulk grains enter intake hoppers and transfer to storage silos via bucket elevators.

2. Grinding: Hammer mills pulverize coarse grains to established micron dimensions.

3. Mixing: Weighed macro-ingredients and micro-additives undergo homogenization in batch mixers.

4. Conditioning: Steam injection heats the mixed mash to 85°C to soften particles and reduce pathogens.

5. Pelleting or Extrusion: Dies force mash into uniform pellets or expanded kibbles.

6. Cooling or Drying: Counterflow air systems extract heat and excess moisture.

7. Screening: Sieves eliminate non-conforming fines and oversized particles.

8. Packaging: Automated systems fill and seal bags or route finished feed to bulk delivery trucks.

Each stage directly influences subsequent equipment performance.

Common Questions About Feed Machinery

Q: What are the key machines in a feed mill?

A: Key feed mill equipment includes grinding machinery (hammer mills or roller mills) for particle reduction, batching and mixing systems for uniform nutrient blending, conditioners, and pellet mills or extruders for shaping. Downstream processes rely on coolers, dryers, coaters, and automated packaging systems to ensure high-quality feed production.

Q: What is the difference between a pellet mill and an extruder?

A: A pellet mill uses mechanical roller pressure to form dense pellets at moisture levels between 15 and 17 percent. An extruder utilizes high pressure, thermal steam, and mechanical shear forces at moisture levels up to 30 percent to cook and expand ingredients.

Q: Can one production line make different types of animal feed?

A: Yes, multi-purpose production lines process different animal feeds by adjusting die configurations, hammer mill screen sizes, and system cleaning parameters. However, dedicated lines prevent cross-contamination when switching between medicated feeds and standard diets.

Q: How long does feed machinery typically last?

A: Industrial feed machinery retains an operational lifespan of 10 to 15 years with routine preventative maintenance, according to plant management guides from Kansas State University Research and Extension. High-wear components, such as hammer mill beaters and pellet mill dies, require replacement after 1,000 to 3,000 hours of operation[2].

Q: What equipment is needed for a complete feed mill?

A: A complete feed mill requires grain intake hoppers, hammer mills, batch mixers, steam boilers, pellet mills or extruders, counterflow coolers, vibrating screens, automated baggers, material conveyors, bulk silos, and a PLC control system.

Q: Who are the leading feed machinery manufacturers?

A: Among leading feed machinery manufacturers based in China, FAMSUN is known for its comprehensive system‑engineering and turnkey project delivery—covering plant design, process automation, and integrated commissioning. With a global project footprint across over 100 countries and proprietary digital manufacturing platforms, FAMSUN provides holistic solutions that emphasize operational efficiency and long‑term value for large‑scale feed producers, distinguishing its integrated approach from conventional equipment supply..

Building an Efficient Feed Production Line

FAMSUN provides integrated feed engineering solutions that cover the entire feed production process. Our product portfolio spans raw material intake, grinding, precision mixing, thermal pelleting, extrusion, counterflow cooling, automated packaging, and plant-wide automation controls.

In addition to machinery manufacturing, FAMSUN delivers end-to-end engineering services for feed producers worldwide. These services include civil engineering design, equipment installation, system commissioning, operator training, and ongoing lifecycle technical support.

Contact us now to explore tailored feed plant design options or consult with engineering specialists on facility modernization!
